Wood Core Composite Wood
Handrail / Fence / Louver

Wood Core Composite Wood Handrail / Fence / Louver

Handrails, fences and louvers in various sizes and colors that are resistant to abrasion and salt damage

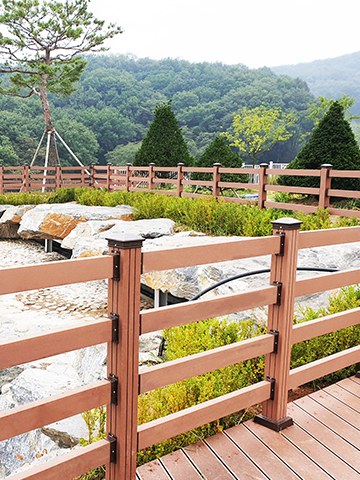

The wood plastic composite fence A hollow, extruded, foamed polyethylene material is used. Wood plastic composite fences are more expensive than those made with wood, but are they are preferred by consumers because they are scratch-free and do not need to be painted like wood fences. In particular, the wood plastic composite fence helps block heat by the addition of wood powder.
Wood plastic composite fences, which are superior in aesthetics and functionality to conventional wood and are resistant to abrasion and salt damage, are receiving more attention, and they are being produced in accordance with relevant regulations.

types of Fence

  • UH-03
    3 Horizontal lines
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100
    Crossbar :
    96 x 45
  • UH-04
    4 Horizontal lines
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100
    Crossbar :
    96 x 45
  • U5-03-05
    3 Horizontal lines /
    5 Vertical lines
    Standard :
    W1500 x H1200mm(span
    Post :
    100 x 100
    Crossbar :
    96 x 45
    Vertical bar :
    50 x 50
  • UH-02-05
    2 horizontal lines /
    5 Vertical lines
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100
    Crossbar :
    96 x 45
    Vertical bar :
    50 x 50
  • UH-05
    5 Horizontal lines
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100
    Crossbar :
    96 x 20
  • UH-02-08
    2 Horizontal lines /
    8 Vertical lines
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100
    Crossbar :
    96 x 45
    Vertical bar :
    90 x 20
  • U5-03-07
    3 Horizontal lines /
    7 Vertical lines
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100
    Crossbar :
    96 x 45
    Vertical bar :
    90 x 20
  • UH-03-R
    3 line rope
    Standard :
    W1500 x H1200mm(span)
    Post :
    100 x 100

Handrail/Fence Product Types and Specifications

Post Crossbar Vertical Bar Bench materials Upper cap Lower cap Floating Bracket Fixed Bracket Vertical stand fixing bracket Louvre Louvre Subsidiary

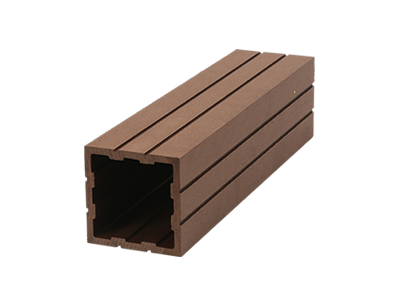

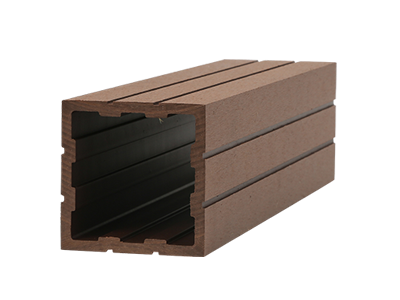

Post

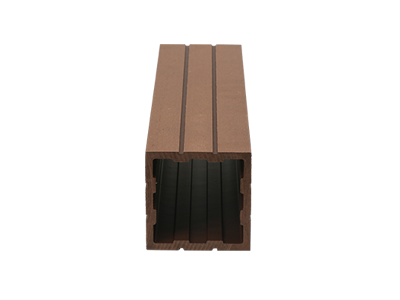

  • UHP100-R(Cherry)
    100 x 100 (2400) mm

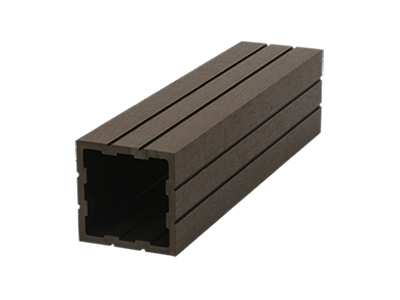

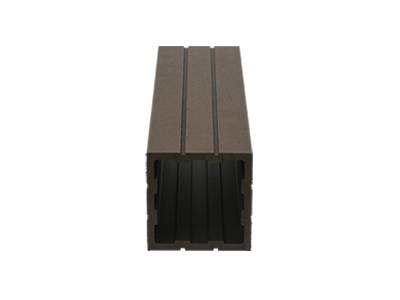

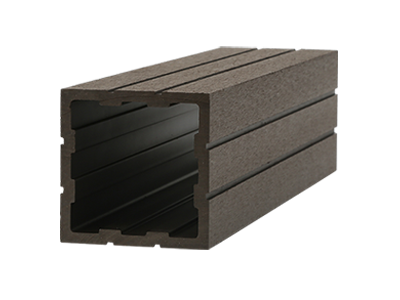

  • UHP100-D(Dark Brown)
    100 x 100 (2400) mm

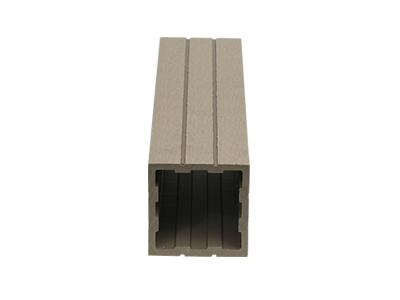

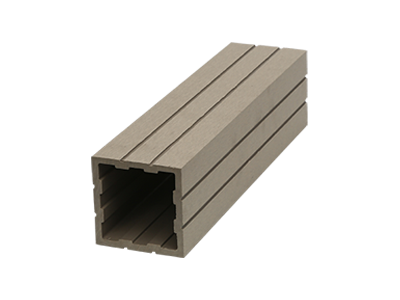

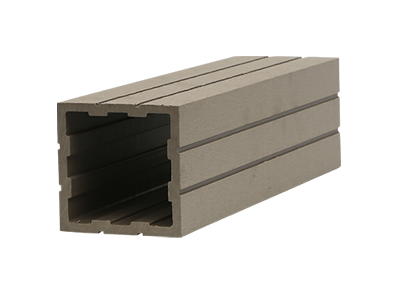

  • UHP100-WG(White Gray)
    100 x 100 (2400) mm

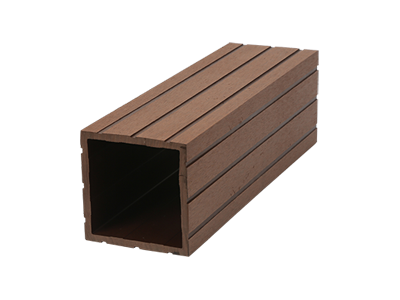

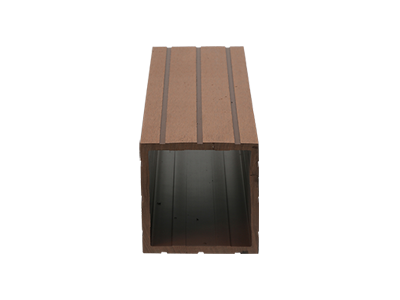

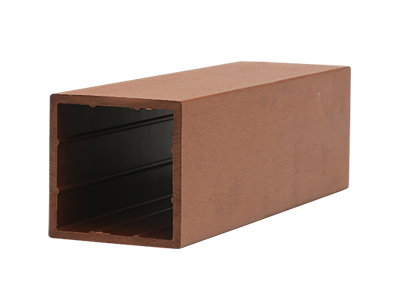

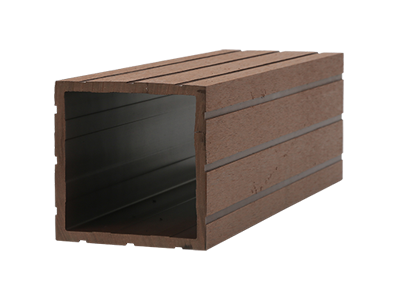

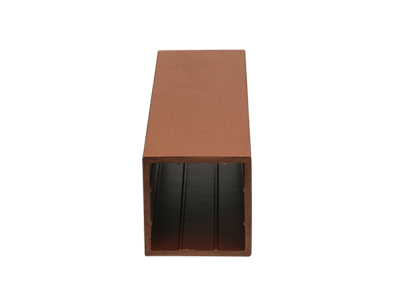

  • UHP120-R(Cherry)
    120 x 120 (2400) mm

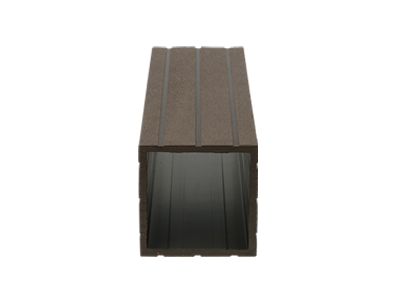

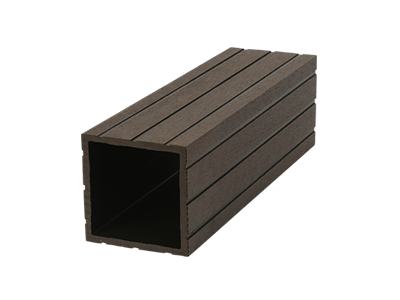

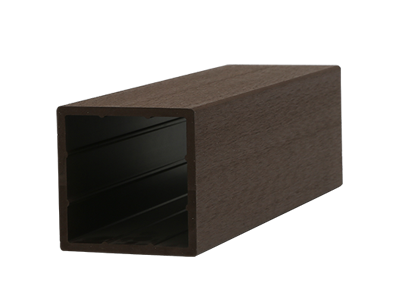

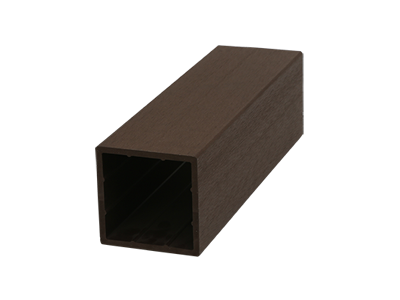

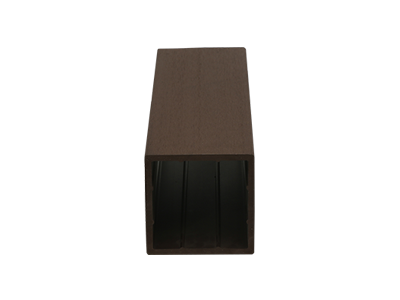

  • UHP120-D(Dark Brown)
    120 x 120 (2400) mm
  • UHPY120-R(Cherry)
    120 x 120 (2400) mm

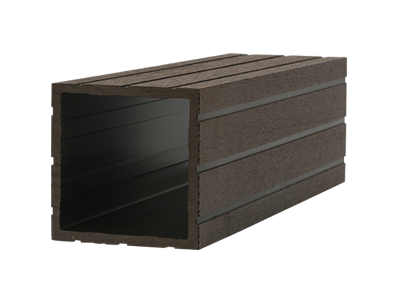

  • UHPY120-D(Dark Brown)
    120 x 120 (2400) mm

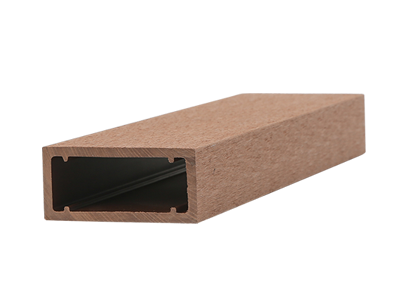

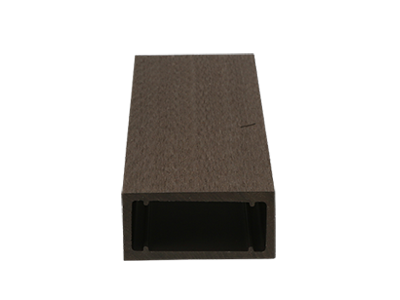

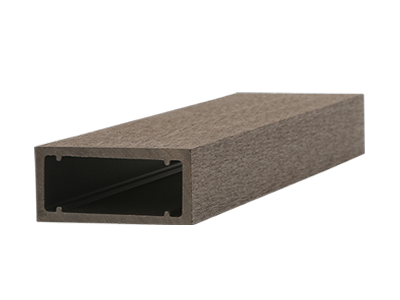

Crossbar

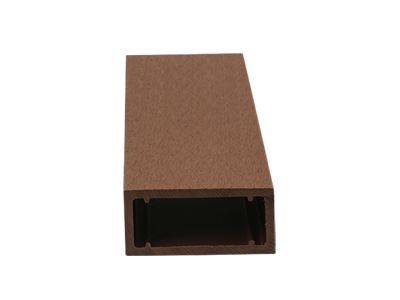

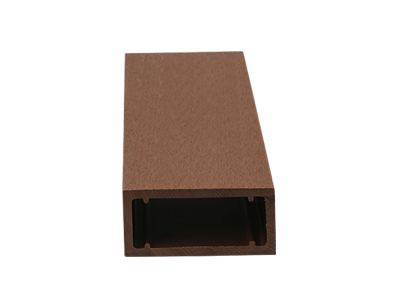

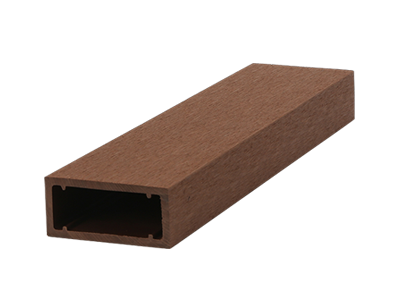

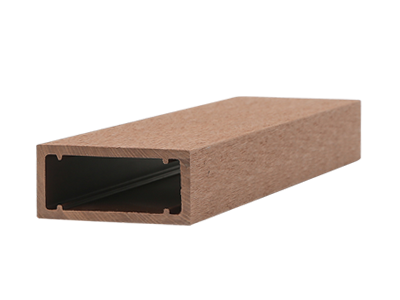

  • UHW96-45R(Cherry)
    96 x 45 (3000) mm

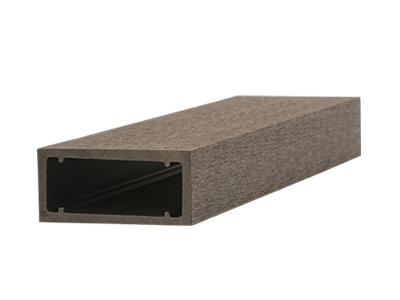

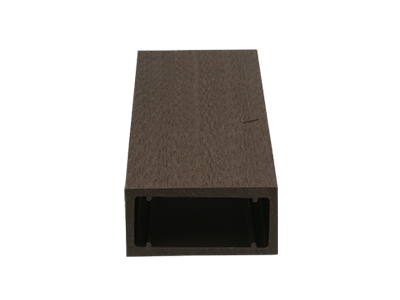

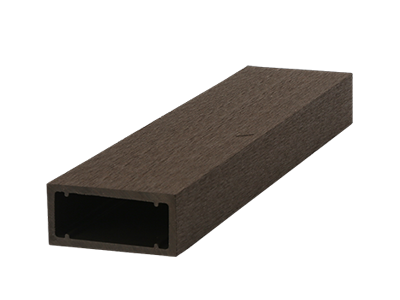

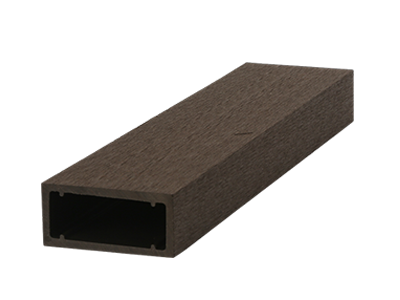

  • UHW96-45D(Dark Brown)
    96 x 45 (3000) mm

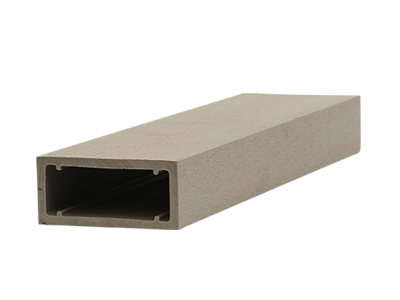

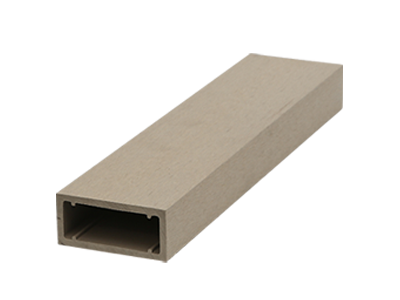

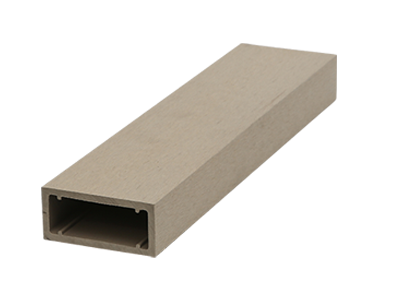

  • UHW96-45WG
    96 x 45 (3000) mm

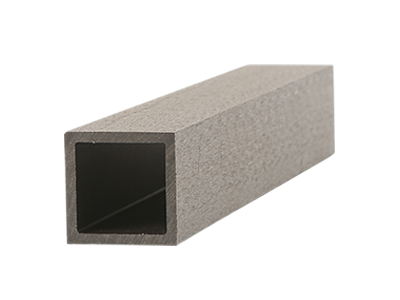

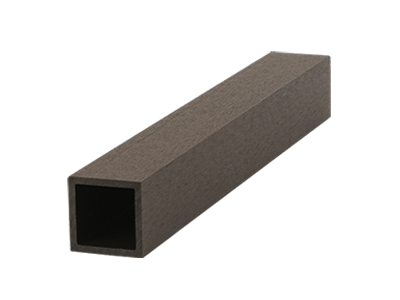

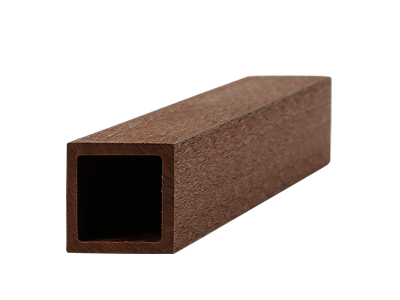

Vertical Bar

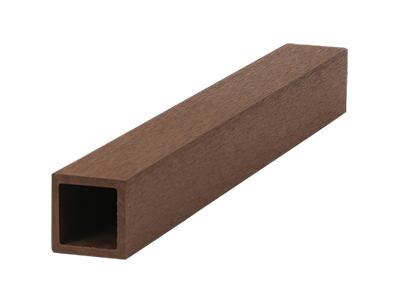

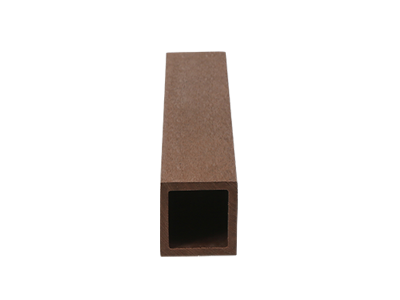

  • UHH50-50R(Cherry)
    50 x 50 (3000) mm

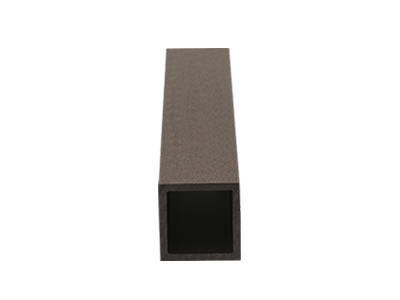

  • UHH50-50D(Dark Brown)
    50 x 50 (3000) mm

Bench materials

  • UHB90-40R
    90 x 40 (1800) mm
  • UHB90-40S
    90 x 40 (1800) mm

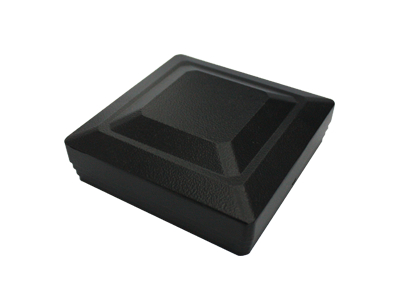

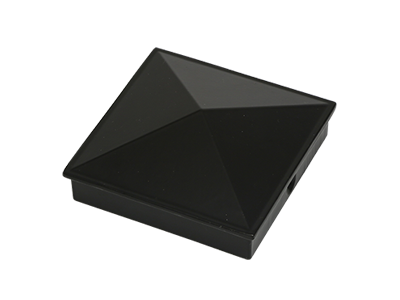

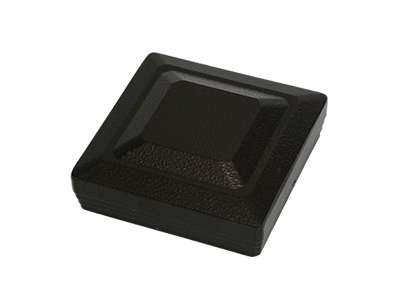

Upper cap

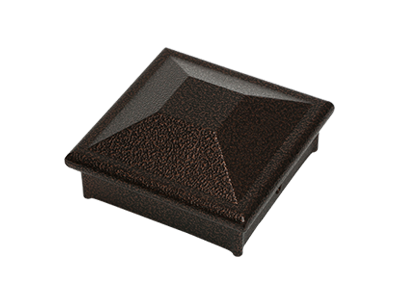

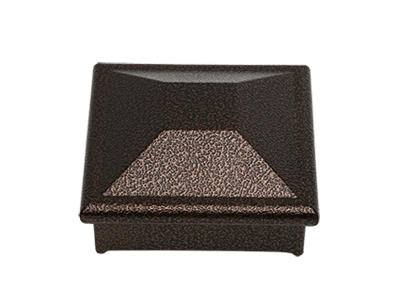

  • UHAT-D100
    100 x 100
  • UHAT-S100
    100 x 100
  • UHAT-B100
    100 x 100

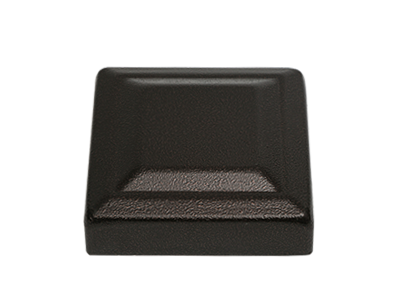

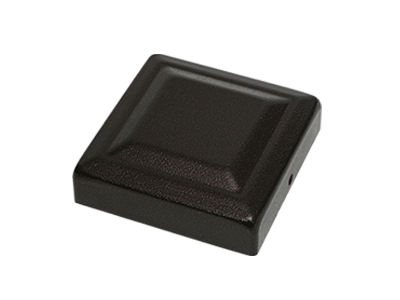

  • UHAT-S120
    100 x 100

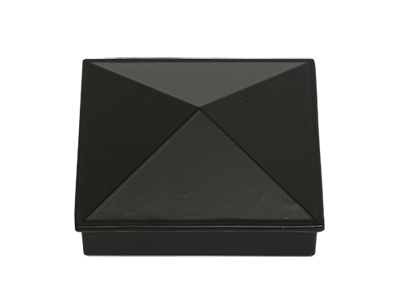

  • UHAT-S75
    75 x 75

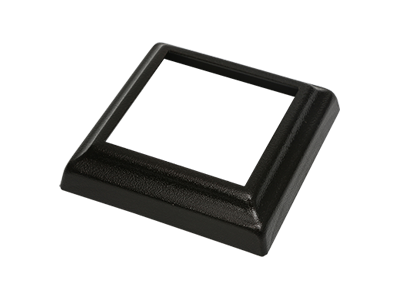

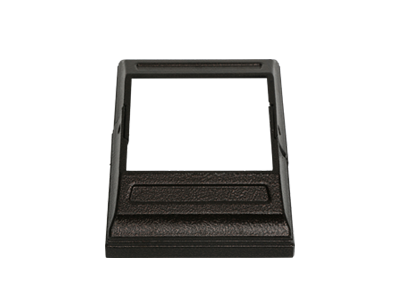

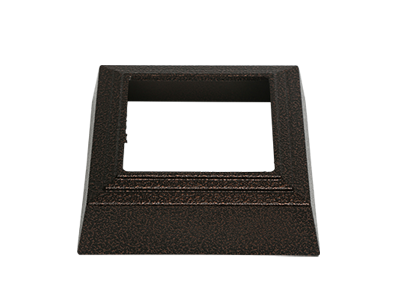

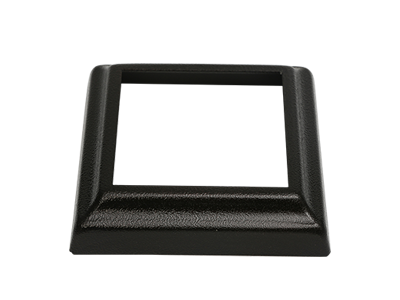

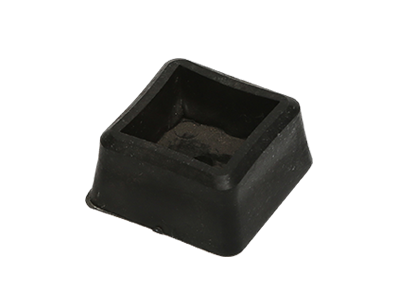

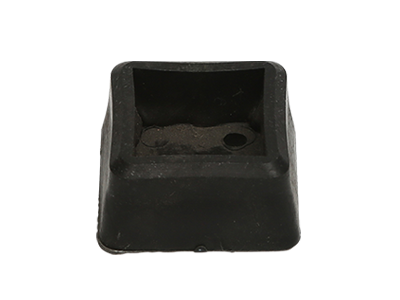

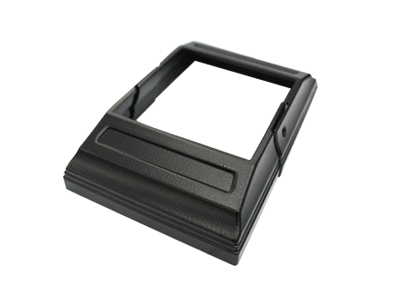

Lower cap

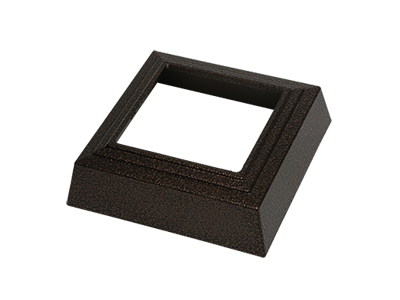

  • UHAU-D100
    100 x 100(All-in-one type)

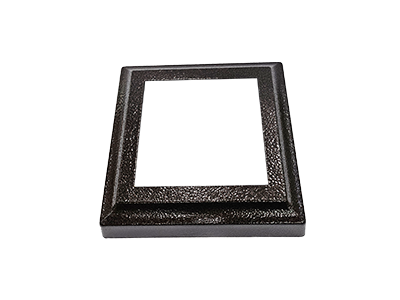

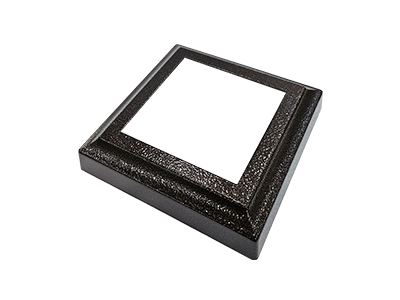

  • UHAU-S100-1
    100 x 100(All-in-one type)

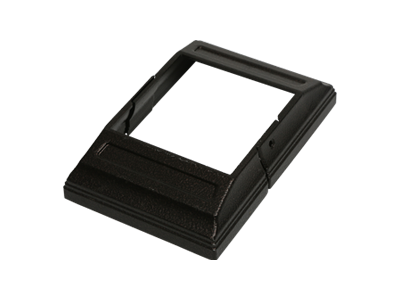

  • UHAU-S100
    100 x 100(Detachable type)

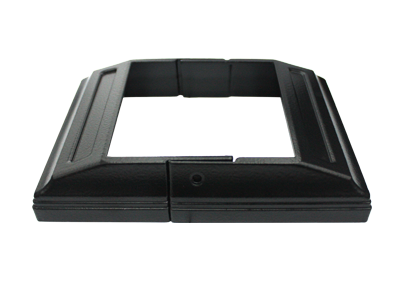

  • UHAU-B100
    100 x 100
  • UHAU-S120
    120 x 120(All-in-one type)

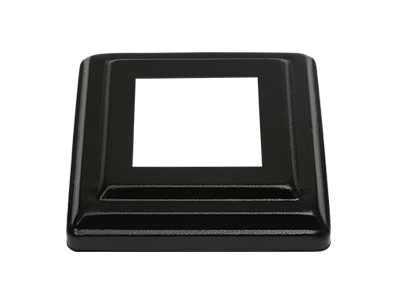

  • UHAU-S75
    75 x 75

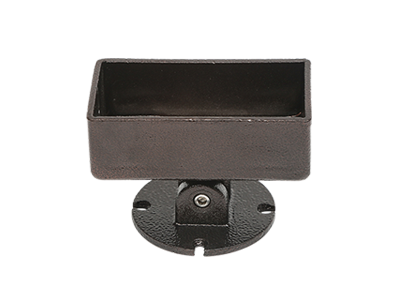

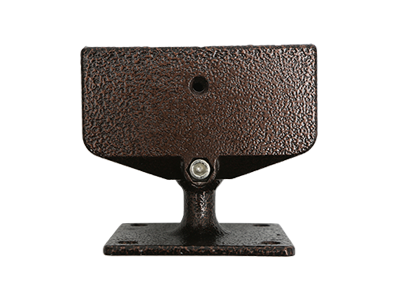

Floating Bracket

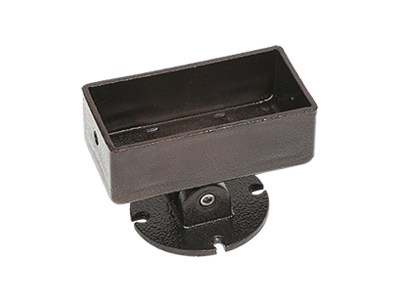

  • UHAC-D96UDHL
    Up Down Left Right
    96 x 45

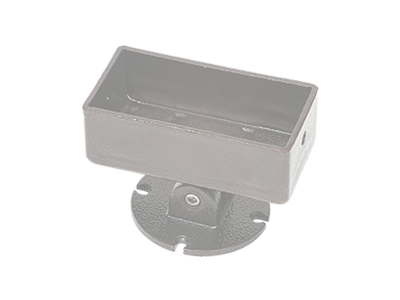

  • UHAC-T96UDHL
    Up Down Left Right
    96 x 45
  • Custom-made
    Up Down Left Right
    71 x 41 / 76 x 46 / 91 x 41
    96 x 46 / 90 x 45 / 100 x 50

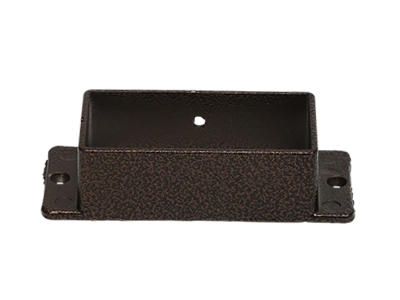

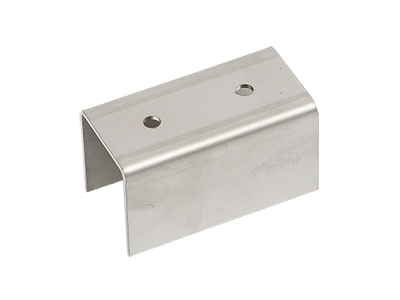

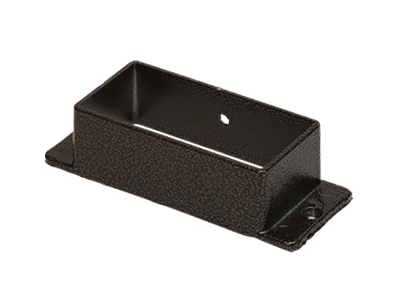

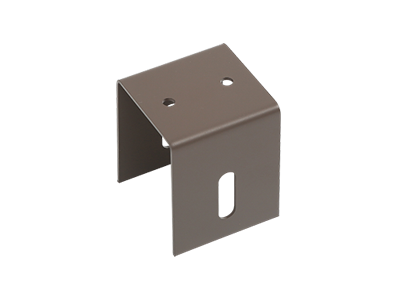

Fixed Bracket

  • UHAC-96N
    96 x 45

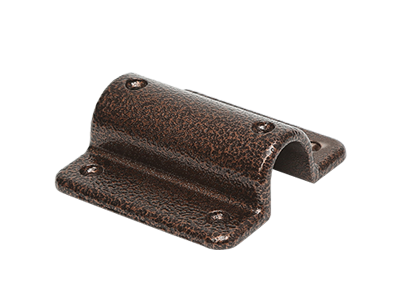

  • UHAC-24N

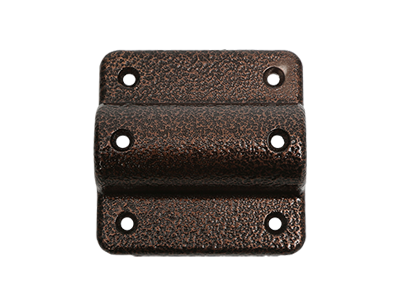

    Rope Fixed Bracket
  • Custom-made
    71 x 41 / 76 x 46 / 91 x 41
    96 x 46 / 90 x 45 / 100 x 50

Vertical stand fixing bracket

  • UHAC-51N

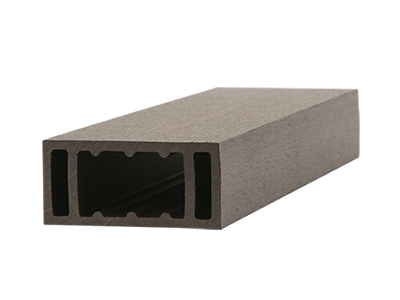

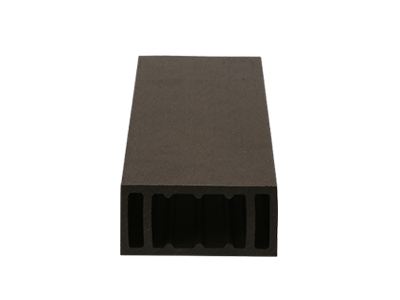

Louvre

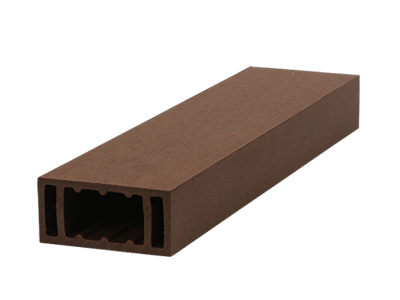

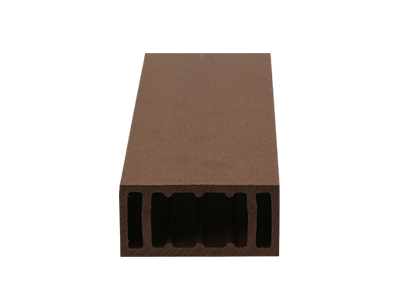

  • UL100-50R(Cherry)
    100 x 50 (3000) mm

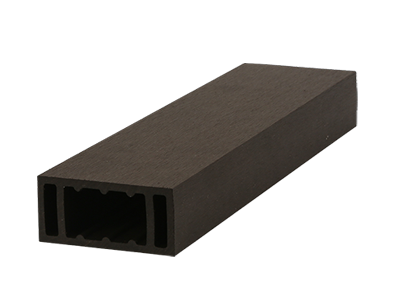

  • UL100-50D(Dark Gray)
    10 x 50 (3000) mm
  • UL96-45R(Cherry)
    95 x 45 (3000) mm
  • UL96-45D(Dark Brown)
    95 x 45 (3000) mm

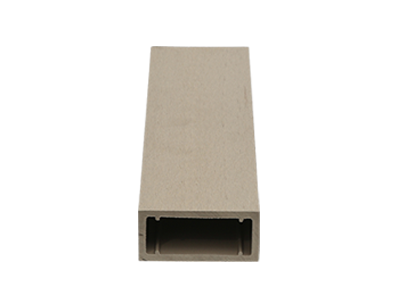

  • UL96-45WG(White Gray)
    95 x 45 (3000) mm

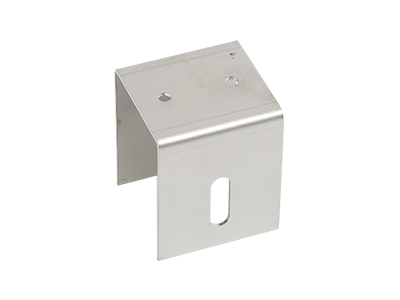

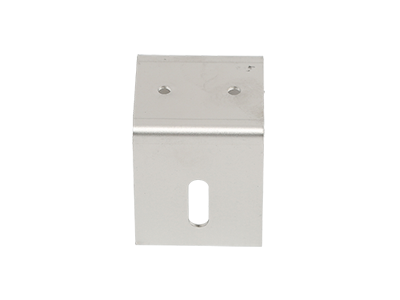

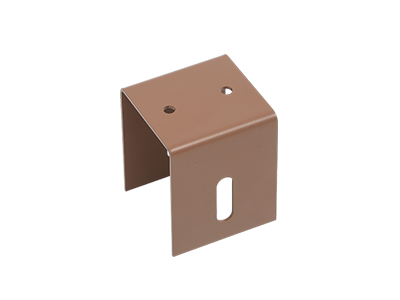

Louvre Subsidiary

  • Inner Bracket
    96 x 45

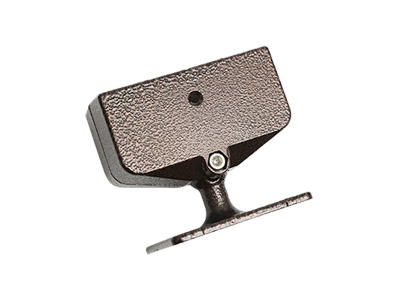

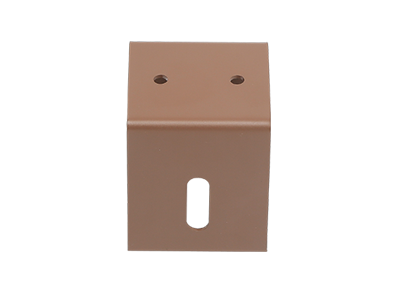

  • Bracket-R
  • Bracket-D
  • Bracket-S

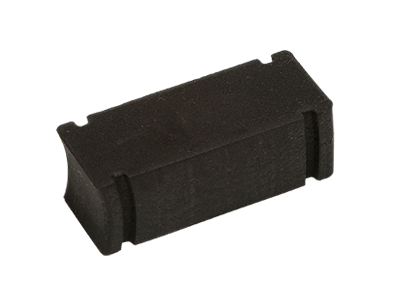

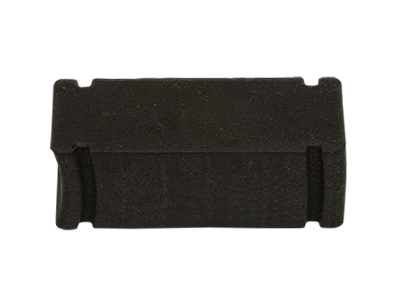

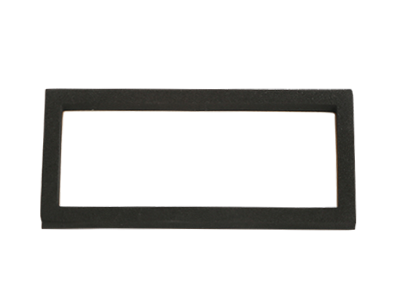

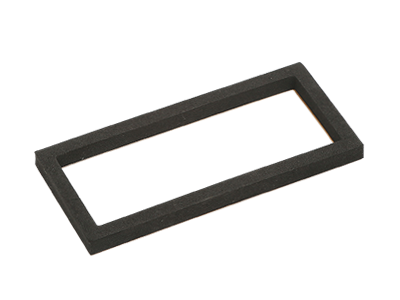

  • EVA Stopper Foam
    96 x 45 / 50 x 50
  • Square EVA Connection Foam
    96 x 45 / 50 x 50

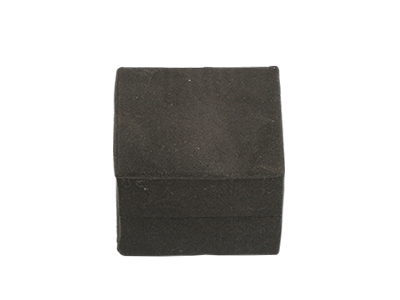

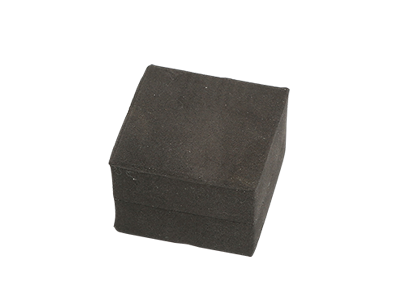

  • Vertical Bar Stopper Form
    50 x 50
    Foam

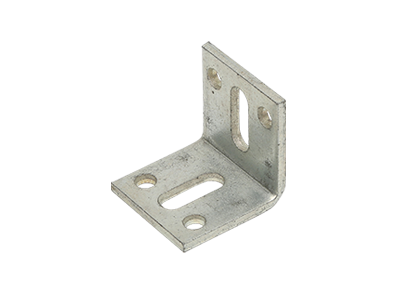

  • Hasner-S

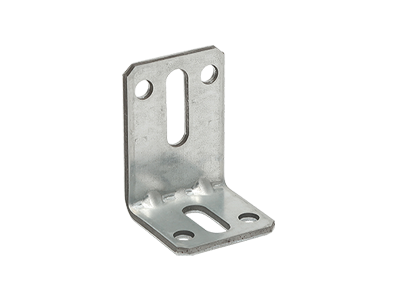

  • Hasner-M

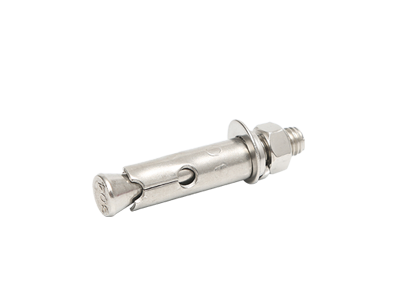

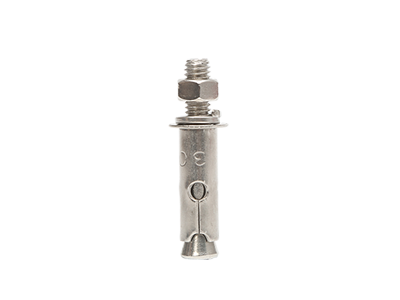

  • Hasner-anchor
Sample

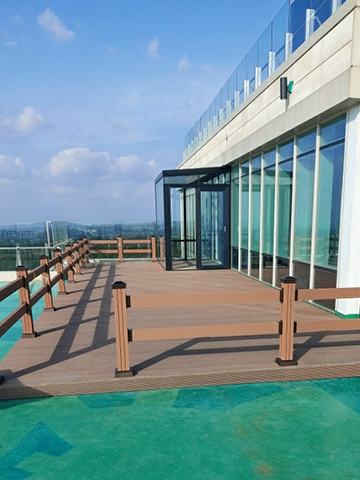

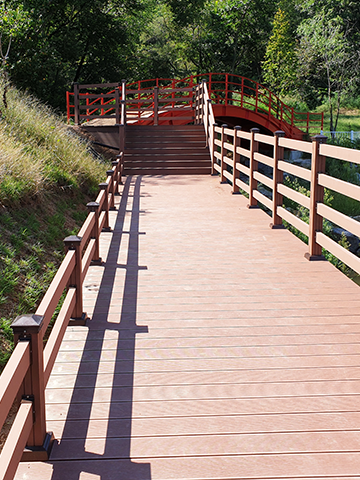

Installation

A functional exterior
wall finish that decorates
the exterior of the building.
